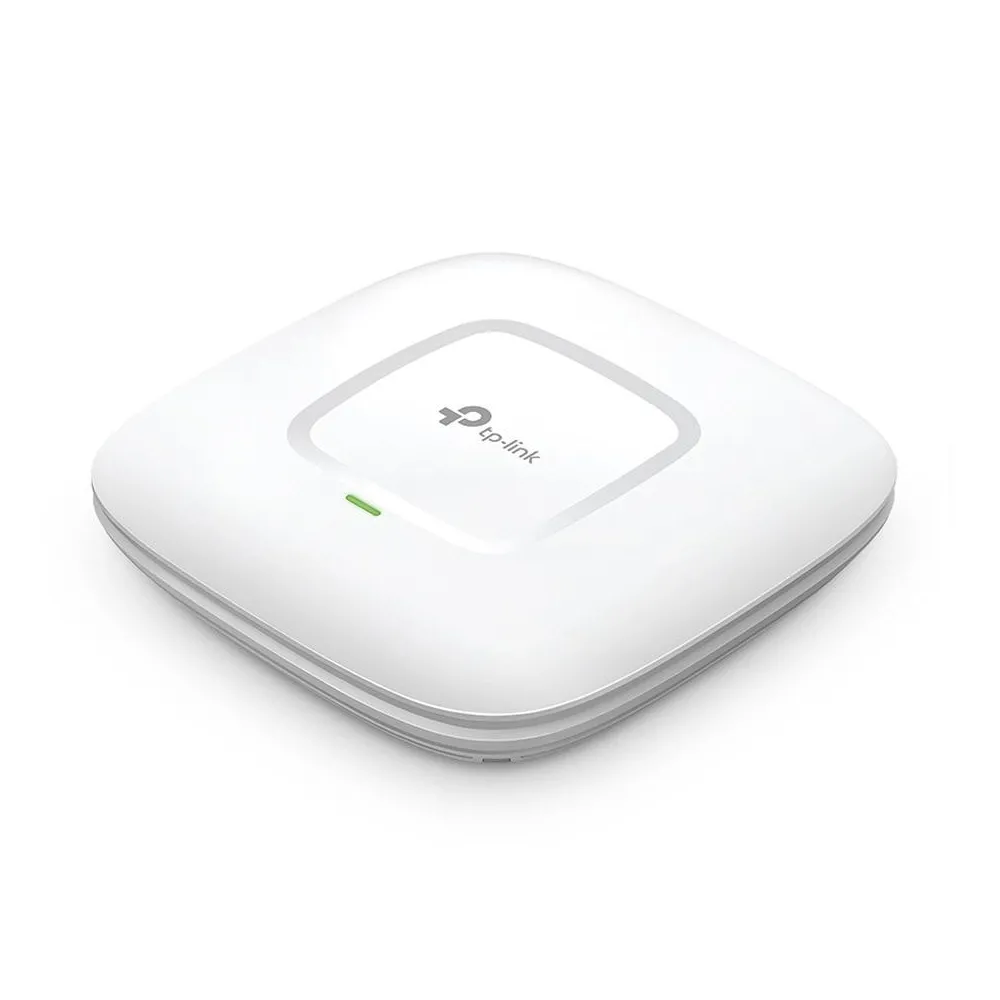

Access point TP-LINK EAP115, 1x RJ-45, White

CARACTERISTICI HARDWARE

Interfață 1× Fast Ethernet (RJ-45) Port (Support IEEE802.3af PoE)

Butoane Reset

Alimentator 802.3af PoE or external 9VDC/0.6A power supply

Consum Energie 2.8 W

Dimensiuni (L x l x H) 189.4×172.3×29.5mm

Tip antenă Internal 2× 4 dBi Omni

Montare Ceiling /Wall Mounting (Kits included)

CARACTERISTICI WIRELESS

Wireless Client Capacity 100+**

Standarde Wireless IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frecvență 2.4–2.4835 GHz

Rată de Semnal • 11n: Up to 300Mbps(dynamic)

• 11g: Up to 54Mbps(dynamic)

• 11b: Up to 11Mbps(dynamic)

Sensibilitate Receptor • 300M: -71dBm@10% PER

• 150M: -75dBm@10% PER

• 54M: -78dBm@10% PER

• 11M: -93dBm@8% PER

• 6M: -92dBm@10% PER

• 1M: -96dBm@8% PER

Funcții Wireless • Multiple SSIDs (Up to 8 SSIDs)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Securitate Wireless • Captive Portal Authentication

• Access Control

• Wireless MAC Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

Putere de Emisie • CE:

≤19 dBm (EIRP)

• FCC:

≤21 dBm

MANAGEMENT

Omada App Yes

Centralized Management • Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)

Alerte Email Yes

Control LED Pornit/Oprit Yes

Management Control Acces MAC Yes

SNMP v1,v2c

System log local/System Log la Distanță Local/la Distanță Local/Remote Syslog

SSH Yes

Management Web-based HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

ALTELE

Certificări CE, FCC, RoHS

Conținut Pachet • 300Mbps Wireless N Ceiling Mount Access Point EAP115

• Power Adapter

• Mounting Kits

• Installation Guide

Cerințe de sistem Microsoft Windows 11/10/8/7/Vista/XP, Linux

Mediu • Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
