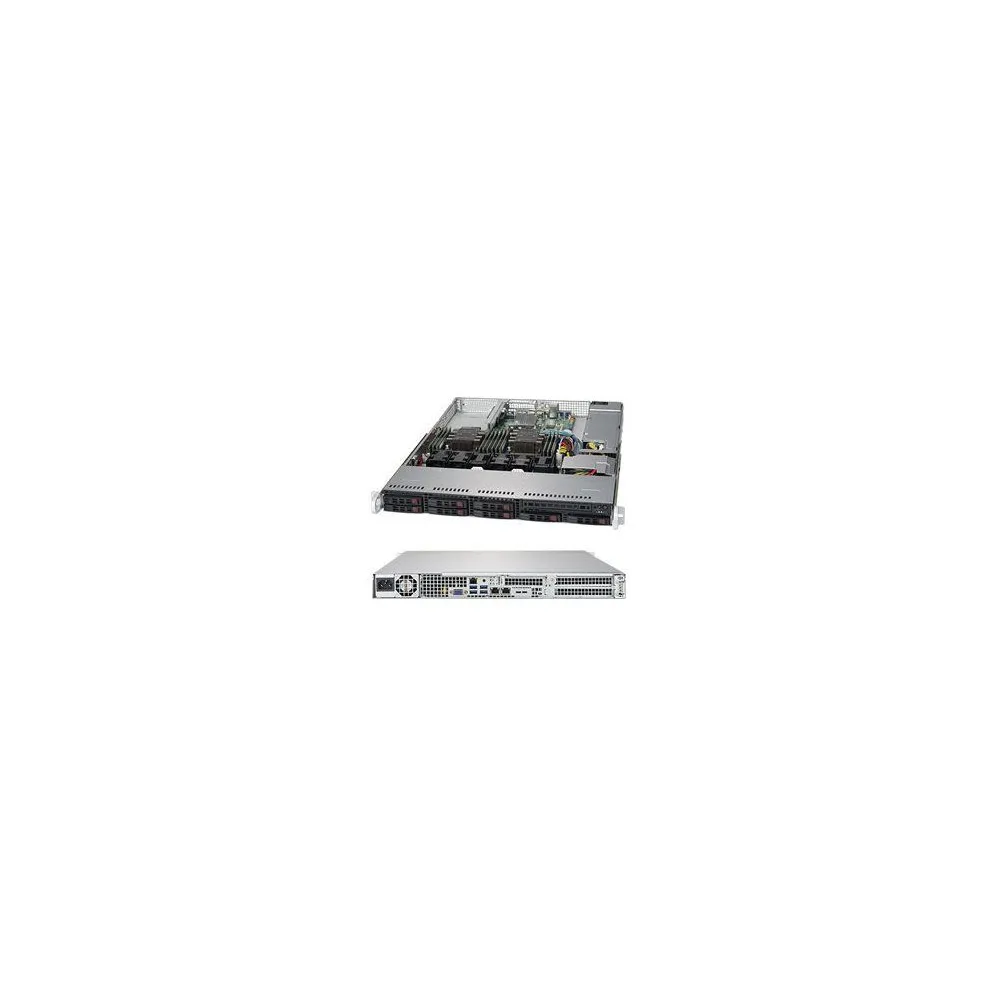

Supermicro superserver sys-1029p-wt 1u 2 x p (lga 3647) 12

Fisa tehnica

Garantie

12

Vga

1 (15-pin db)

Tip sistem

Server barebone

Produse returnabile aflate in garantie

Yes

Criterii de validare a garantiei

Serial number

Greutatea bruta a pachetului

20.9 kg

Greutatea neta a pachetului

0 kg

Bucati in pachet

1

Retail packaging net weight carton

0 kg

Retail packaging net weight plastic

0 kg

Pachete (colete) in cutie

1

Tip pachet

Retail

Adancime

597 mm

Inaltime

43 mm

Latime

437 mm

Greutate nominala

20.9 kg

Termen de garantie

12 month(s)

Temperatura maxima de operare a mediului ambiant

35 °c

Temperatura ambientala minima de operare

10 °c

Umiditate maxima de operare

90 %

Umiditate minima de operare

8 %

Adancime pachet

750 mm

Grosimea pachetului

610 mm

Inaltime pachet

200 mm

System form factor

Rack-mountable

Supported cpus

Xeon scalable processors

Standard soclu procesor (cpu)

Socket 3647

Cpu capacitate maxima suportata

2

Quantity of mainboards supported

1

Tip memorie

Ddr4 sdram

Factor de forma a memoriei

Dimm 288-pin

Viteza de memorare

2133mhz(pc4-17000) ,2400mhz(pc4-19200) ,2666mhz(pc4-21300)

Ofera metode de corectie a erorilor

Ecc

Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata

1.5 tb

Cantitatea totala de sloturi de memorie

12

Caracteristici memorie

Registered ,load reduced

Integrated

Bstorage controller:/b,supports: level 0, level 1, level 10, level 5,sata iii-600 (8),bstorage controller:/b,pci-express (1 x m.2),

Video controller form factor

Integrated

Chipset (circuit integrat) video

Aspeed ast2500

Networking form factor

Integrated

Lan

2 (rj-45)
Gigabit ethernet

Number of 2.5-inch hot-swap drive bays

8

Number of slim external drive bays

1

Dispozitiv alimentare

Power supply - redundant

Power device location

Internal

Voltaj intrare

Ac 100-140/200-240 v

Frecventa intrare

50/60 hz

Power device installed

2 redundant (1+1)

Nr maxim de dispozitive de alimentare

2

Puterea maxima la iesire

400 w

Culoare la exterior

Black/metal

Inaltimea standard a rack-ului

1 u

Frecventa de ceas a bus-ului unitatii centrale de procesare

10.4 gt/sec

Chipset

Intel c621

Management port

1 (rj-45)

Usb3.0

4 (usb 3.0 (type a))

Pci express 3.0 x8

1

Pci express 3.0 x16

3
