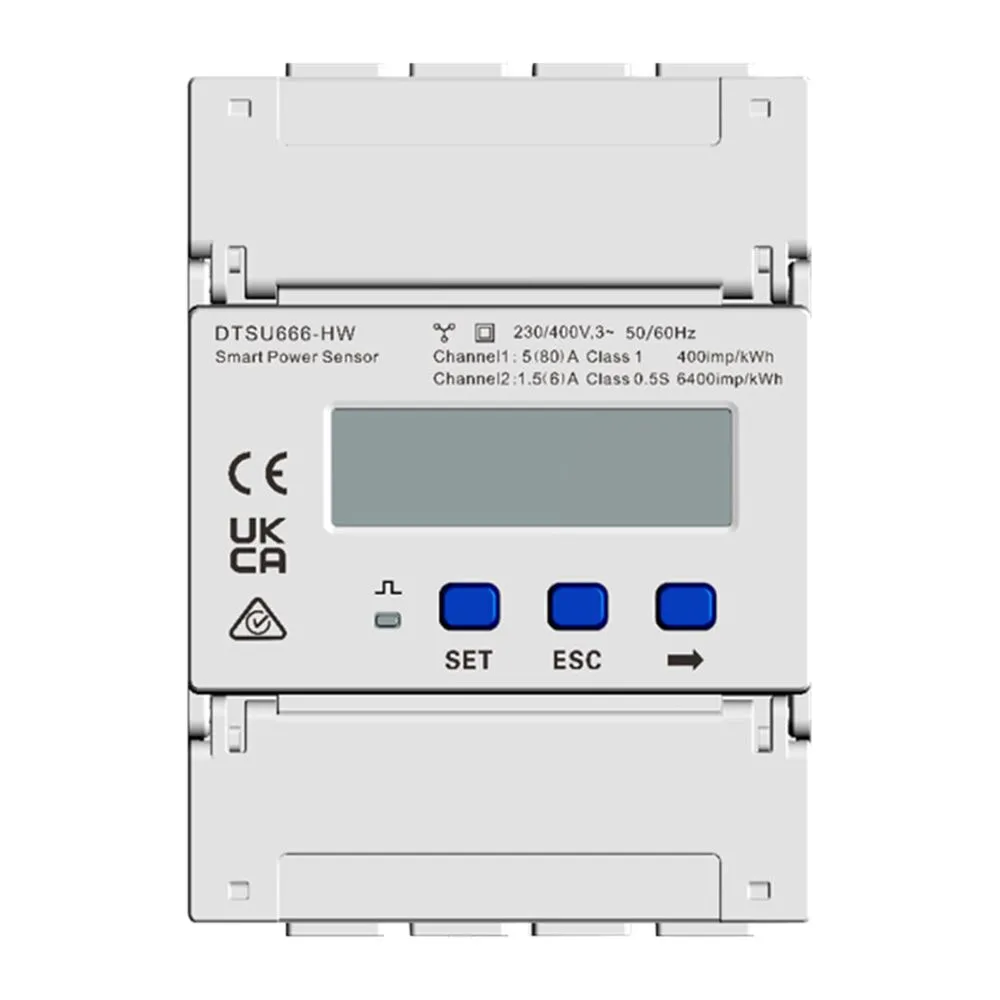

Huawei Smart Power Sensor DTSU666-HW, YDS60-80 Smart Meter 3 phase

Huawei Smart Power Sensor DTSU666-HW, YDS60-80 Smart Meter 3 phase

Huawei
DTSU666-HW
highlight_off Stoc epuizat – contactează-ne pentru termen de livrare

Lipsa stoc
1.323,32 lei
Include TVA
Cantitate

Stoc epuizat
Add to Compare
Add to Wishlist
Metode de plată disponibile:
credit_card
Card bancar
Visa & Mastercard
tbi
4 rate
0% dobândă
până la 2.000 lei
6–60 rate
Dobândă fixă
peste 2.000 lei
local_shipping
Plată la livrare
Ramburs curier
receipt
Ordin de plată
Transfer bancar / OP
assignment
Acest produs poate fi achiziționat și prin SEAP sau proiecte finanțate.
Pentru oferte oficiale, documentație sau achiziții prin SEAP/proiecte, contactează departamentul nostru de vânzări.
account_balance Instituții și companii
support_agent Persoane Fizice

Dimension (H x W x D) 100 x 72 x 80 mm (3.9 x 2.8 x 3.1 inch) Mounting type DIN35 Rail Weight (including cables) < 0.5 kg Power Supply Power grid type 3P4W/3P3W Input voltage (line voltage) 90 ~ 500 Vac Power consumption ≤ 1.5 W Measurement Range Line voltage 90 Vac ~ 1000 Vac (> 500 with external PT 1) Phase voltage 52~577 Vac Current 0 ~ 80 A(>80 with external CT 2) Measurement Accuracy Voltage / Current ±0.5 % Power / Energy ±1 % Frequency ±0.01 Hz Communication Interface RS485 Baud rate 4800/9600/19200/115200 (Default 9600bps) Communication protocol Modbus-RTU Environment Operating temperature range -25 ℃ ~ 60 ℃ Storage temperature range -40 ℃ ~ 70 ℃ Operating humidity 5 %RH ~ 95 %RH (non-condensing)

Huawei
: DTSU666-HW
Lipsa stoc

Fisa tehnica

Garantie
24
Grad de protectie
No
Tip bransament
Trifazat
