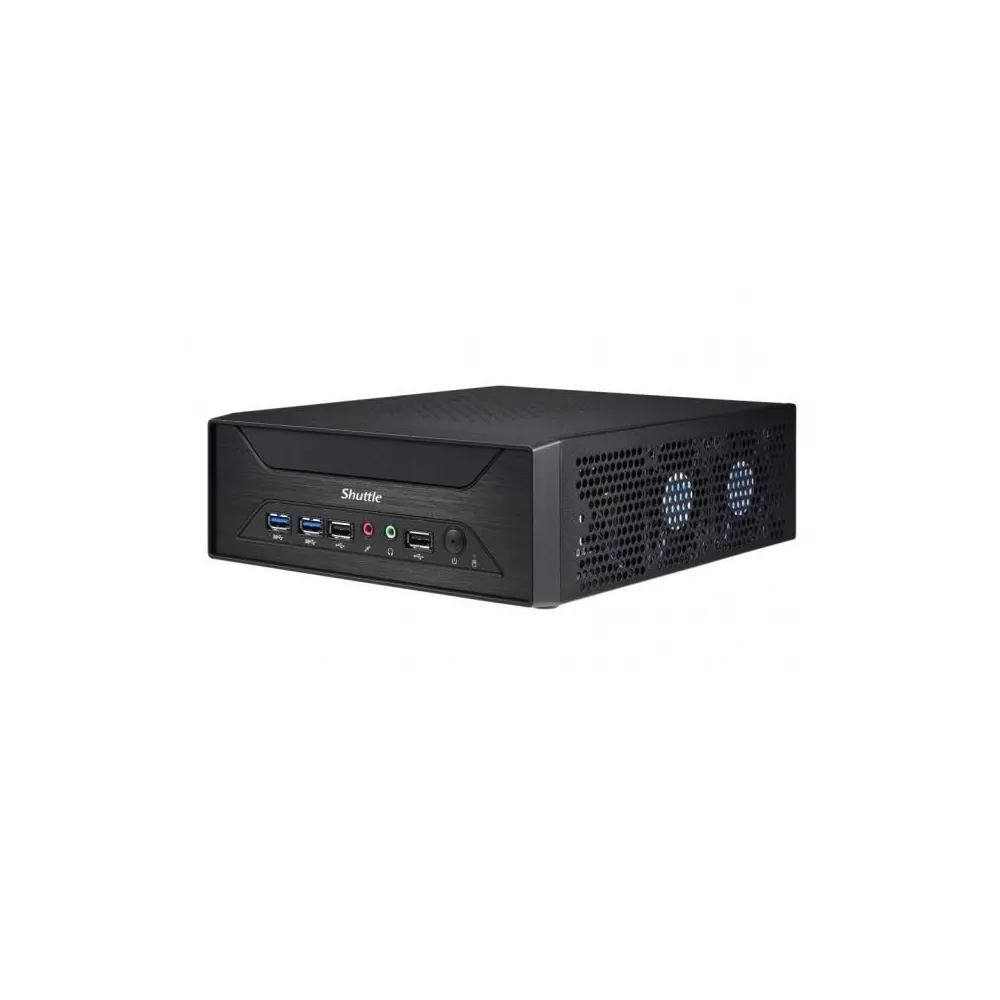

Chassis Slim X-type chassis, colour: blacksinbsp; Dimensions: 250 x 200 x 78.5 mm (LWH) Weight: 1.9 kg net, 3.0 kg gross Open front - no concealed front panel connectors Hole for Kensington Lock at the back panel Operation Position (1) horizontal on its feed (2) vertical with the optional stand (Accessory PS01) (3) vertical with the supplied VESA mount bracketOperation System This system comes without operating system. It is compatible with Windows 10 / 8.1 / 7 and Linux (64-bit).Important note: Windows 7 and 8.1 is only supported in combination with the 6th generation Intel Core processors "Skylake".Mainboard, Chipset and BIOS Mainboard FH110G, form factor 17 x 19 cm Chipset: Intel® H110 Chipset (Intel® GL82H110 PCH, Codename "Sunrise Point") AMI BIOS in 8 MB EEPROM with SPI interface All capacitors are high quality solid capacitors Supports hardware monitoring and watch dog functionality Supports Unified Extensible Firmware Interface (UEFI) Supports power-on-after-power-fail [1]Power Adapter External 180 W power adapter (fanless) Input: 100~240 V AC, 50~60 Hz, max. 2.5 A Output: 19.5 V DC, max. 9.23 A, max. 180 W output wattage AC Connector with protective-earth contacts, cable length: 1.7 m DC Connector: 5.5 / 2.5 mm (outer/inner diameter) Dimensions: ca. 167 x 82 x 25.5 mm = 350 mlProcessor Support Socket LGA 1151 (H4) supports Intel Core i7 / i5 / i3, Pentium and Celeron processors - 6th generation, code name "Skylake" (6000 series) - 7th generation, code name "Kaby Lake" (7000 series) Maximum supported processor power consumption (TDP) = 65 W 14 nm process technology, up to 8 MB of L3 cache Not compatible with Intel Xeon E3 V5 processors for socket LGA 1151 and processors with the older Socket LGA 1150. Does not support the unlock function of Intel K-Series processors. Please refer to the support list for detailed processor support information at global.shuttle.com.Processor Heatpipe Cooling Processor cooling with heatpipe technology and two fans (60 mm)Memory support 2x 260-pin SO-DIMM slot Supports DDR4-2133/2400 (PC4-17000/19200) SDRAM at 1.2 V Supports Dual Channel mode Supports a maximum of 16 GB per DIMM, Maximum total capacity: 32 GB Supports two unbuffered DIMM modules (no ECC or registered)PCIe Expansion Slot 1x PCI-Express X16 v3.0 slot with installed 90° Riser Card The used expansion card must meet the following conditions: - Maximum dimensions: 208.5 mm x 120 mm x 30 mm (Single Slot) - Maximum power consumption: 75 WIntegrated Graphics The features of the integrated Intel HD graphics functionsinbsp; depend on the processor type used. Supports DirectX 12, OGL 5.x, OCL 2.x The PC features the following video outputs: (1) HDMI 1.4 (supports 1080p/60 and 2160p/30) (2) VGA / 15-pin D-Sub (supports analog video) Supports two independent displays simultaneously HDMI supports 7.1 multi-channel digital audio over the same cable Maximum shared memory of 1760 MBAudio Function Audio Realtek® ALC 662 High-Definition Audio Two analog audio connectors (3.5 mm) at the front panel: (1) Microphone input (2) Headphones output (Line out) Digital 7.1 audio output: is possible via the HDMI port Gigabit LAN Controller Intel i211 network controller Supports 10 / 100 / 1.000 MBit/s operation Supports WAKE ON LAN (WOL) Supports network boot by Preboot eXecution Environment (PXE)2.5" Storage Bay This system features one 2.5" drive bay which is accessiblesinbsp; from the bottom of the housing. It supports one 2.5" / 6.35 cm hard disk or SSD with max. 9.5 mm height. The system includes a pre-installed data/power cable [3]. The connector supports SATA III with max. 6 Gbps.M.2-2280 M Slot The M.2 2280 M slot provides the following interfaces: - PCI-Express v2.0 X4 - SATA v3.0 (6 Gbps) It supports M.2 cards with a width of 22 mm and a length of 42, 60 or 80 mm (type 2242, 2260, 2280) and M.2 SSDs with SATA or PCIe interface.M.2-2230 AE Slot The M.2 2230 AE slot has the following interfaces: - PCI-Express v2.0 X1 - USB 2.0 It supports M.2 cards with a width of 22 mm and a length of 30 mm. This slot is intended for Wireless LAN (Wifi), Bluetooth, GSM/UMTS cards and other. A SATA interface for SSD cards is not available here.Internal USB Port This system features one internal USB port which is located behind the bottom cover of this PC. Connector: USB 2.0 Type A Maximum permitted size of the USB stick: 11.5 mm x 28 mm x 88 mmFront Panel connectors 1x Microphone input (3.5 mm) 1x Headphones output (3.5 mm, line out) 2x USB 3.0 2x USB 2.0 1x Power button with Power LED (blue) 1x HDD LED (yellow)Back Panel connectors 1x HDMI 1.4 digital audio/video output, supports screw lock 1x VGA / D-Sub analog video output 4x USB 2.0 1x GigaBit LAN (RJ45) 1x Clear CMOS Button 2x Perforation for Wireless LAN antennas 1x Hole for Kensington LockOther onboard connectors Power-on-after-power-fail (hardware solution by jumper) [1] 4x front connector for power button, LEDs, USBs, audio ports 4-pin fan connectors (occupied by the CPU cooling system) 4-pin USB 2.0 connector (occupied by the internal USB port) 2-pin connector for the CMOS/RTC battery (occupied) 2x 5-pin debug portSupplied Accessories Multi-language installation guide (EN, DE, FR, ES, JP, KR, SC, TC) Driver DVD Bracket for one 2.5" drive with screws External power adapter withsinbsp;1.7 m power cord VESA mount bracket (metal) supports 75x75 and 100x100 mm standard with four screws M4x10 Protector cap for the CPU socket (do not use if heat-pipe or fan is mounted) CPU heatpipe cooling system with heatsink compoundOptional Accessory (1) Vertical stand (PS01) (2) WLAN module (WLN-M) [4]Environmental Specifications Operating temperature range: 0~50 °C [2] Relative humidity range: 10~90 % (non-condensing)Conformity and Certifications EMI: FCC, CE, BSMI, C-Tick Safety: ETL, CB, BSMI Other: RoHS, Energy Star 5.0, ErP This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives: (1) 2004/108/EC relating to electromagnetic compatibility (EMC), (2) 2006/95/EC relating to Electrical Equipment designed for use within certain voltage limits (LVD), (3) 2009/125/EC relating to ecodesign requirements for energy-related products (ErP)[1] Power-on-after-power-fail The BIOS setup provides a "power-on-after-power-fail" function that can be found under "Power Management Configuration". As the name indicates, this function determines the PC's behaviour after power failure: (1) unconditional power on, (2) restore former status or (3) keep system turned off. As a matter of the nature of this function, it may fail after short power failures. This is why this PC also comes with a hardware-based solution. By removing the appropriate jumper J1, the system will start unconditionally once power is supplied.[2] High ambient temperature For high ambient temperature over 40 °C we strongly recommend to use SSDs instead of hard disk drives.[3] Power connector for SATA drives The supplied power cable for a SATA drive provides a voltage of 5 V. In very rare cases a 2.5" hard disk also requires a 12 V line, which is not supported.[4] Optional Wireless LAN module Shuttle offers the optional accessory "WLN-M" which adds WLAN IEEE 802.11ac and Bluetooth 4.0 functionality. This kit consists of an M.2 expansion card and two external antennas with appropriate cables.
