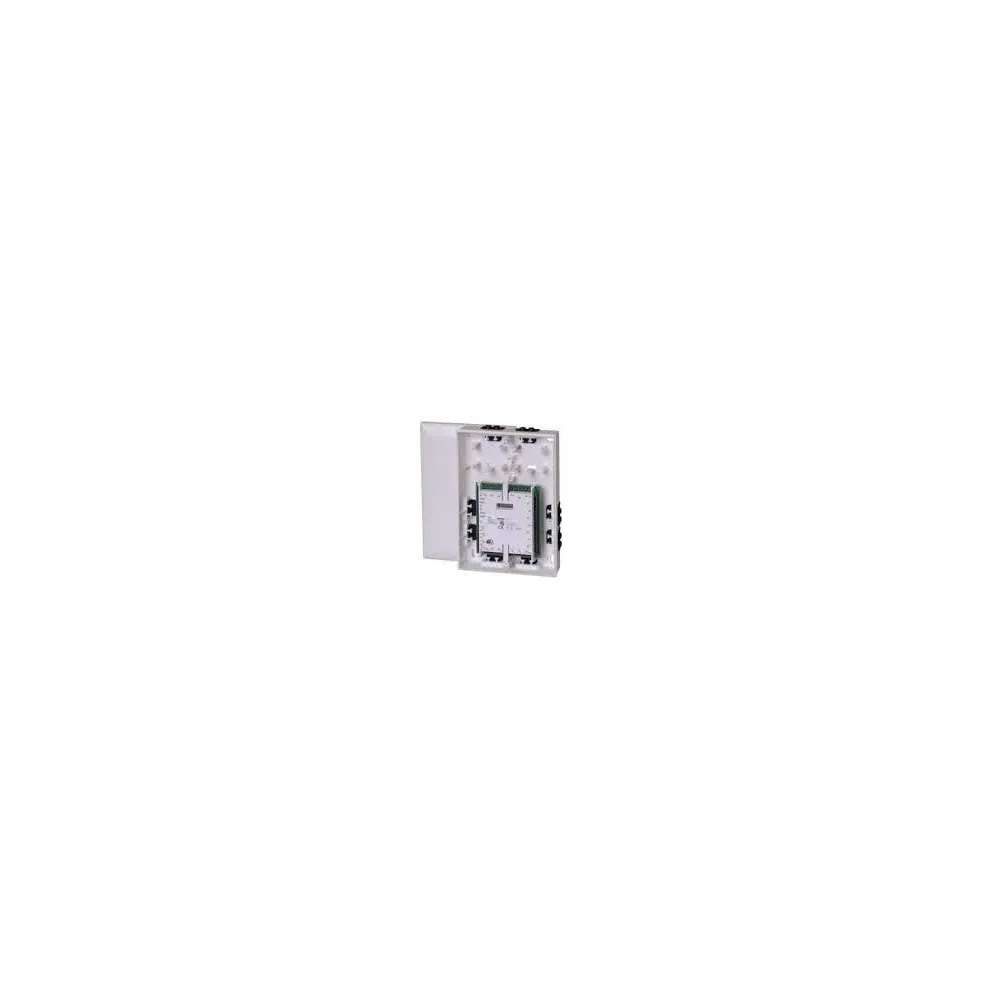

Module expansion lsn/isp-emil-120 bosch

The LSN expansion modules are used  to the local security network (LSN). The expansion modules have been developed for connection to LSN control panels, e.g. MAP 5000, and provide the extended functionality of LSN improved technology. The "classic" LSN mode can be selected via an integrated DIP switch, enabling the connection of all classic LSN emergency call detector control panels such as NZ 300 LSN, UEZ 2000 LSN and UGM 2020. A maximum of 2 IMS-RM Relay Modules can be installed in the expansion module housing version if the high power requirement of the connected control elements results in these becoming impossible to actuate directly from the expansion module, or in order to provide dry contacts. IMS-RM Relay Module with 2 relays, 2 switching contacts per relay for dry contacts.
