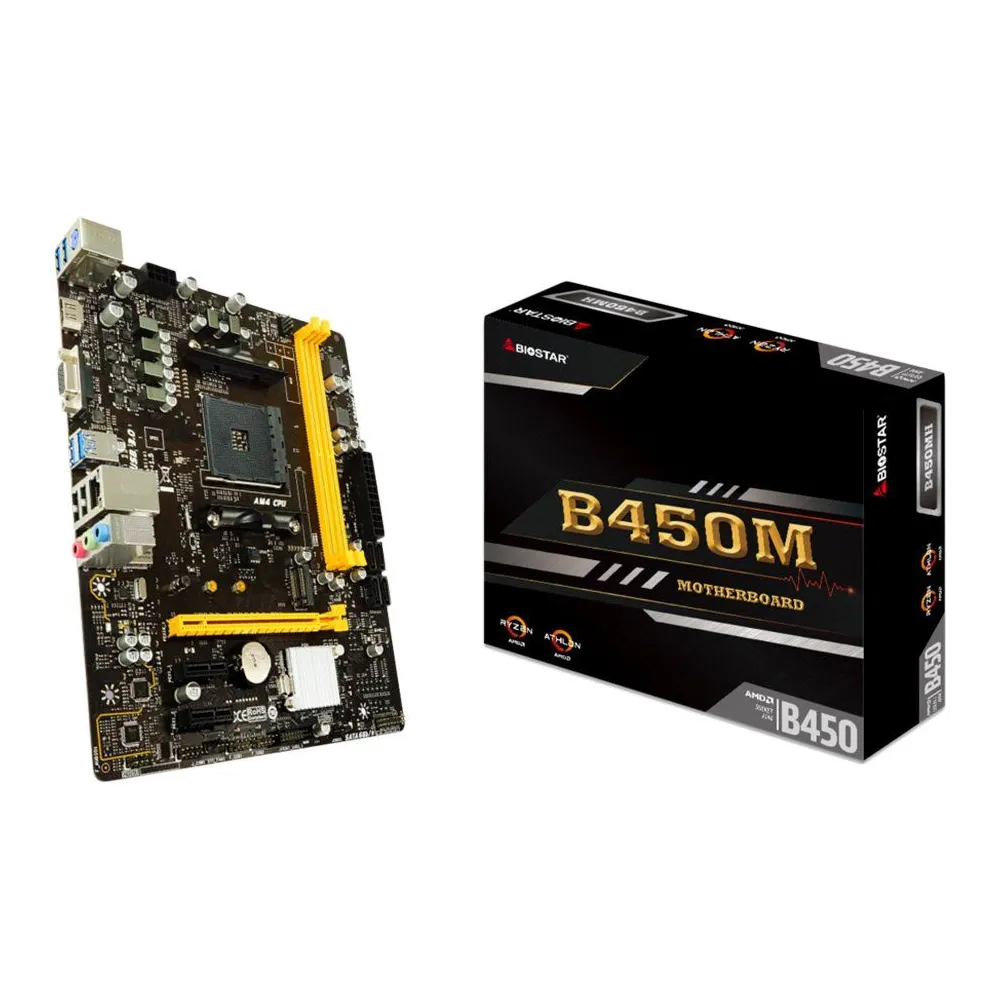

Placa de baza Biostar Main Board Desktop B450

Fisa tehnica

Garantie

24

Vga

1 (15-pin d-sub)

Hdmi

1 (hdmi (type a))

Produse returnabile aflate in garantie

Yes

Criterii de validare a garantiei

Serial number

Greutatea bruta a pachetului

1.5 kg

Greutatea neta a pachetului

1 kg

Bucati in pachet

1

Greutatea bruta a cutiei

30 kg

Retail packaging net weight carton

0.1 kg

Retail packaging net weight plastic

0.1 kg

Pachete (colete) in cutie

20

Tip pachet

Retail

Locatia dispozitivului

Integrated

Factor de forma

Micro atx

Adancime

244 mm

Latime

198 mm

Termen de garantie

24 luni

Standard soclu procesor (cpu)

Socket am4

Cpu capacitate maxima suportata

1

Tip memorie

Ddr4 sdram

Factor de forma a memoriei

Dimm 288-pin

Viteza de memorare

1866mhz(pc4-14900) ,2133mhz(pc4-17000) ,2400mhz(pc4-19200) ,2667mhz(pc4-21300) ,2933mhz(pc4-23400) ,3200mhz(pc4-25600)

Ofera metode de corectie a erorilor

Non-ecc

Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata

32 gb

Cantitatea totala de sloturi de memorie

2

Caracteristici memorie

Two ddr channels

Integrated

Bstorage controller:/b,supports: level 0, level 1, level 10,sata iii-600 (4),bstorage controller:/b,pcie/sata (1 x m.2 (key m)),

Lan chipset

Realtek rtl8111h

Lan

1 (rj-45)

Suport protocol legatura date

Gigabit ethernet/fast ethernet/ethernet

Chipset

Amd b450

Usb 2.0

2 (usb 2.0 (type a))

Pci express 3.0 x16

1

Cabluri incluse

2 x sata cables

Audio chipset

Realtek alc887

Audio output mode

7.1 channel surround

Standard audio

High definition audio

Audio interface

3 (3.5-mm minijack)

Accesorii incluse

I/o shield ,scurt ghid de utilizare ,driver cd

Ps/2

1

Prevazut cu cpu

Amd ryzen series 2nd generation ,amd ryzen series 1st generation ,amd ryzen series 3rd generation

Lan integrated

Yes

Hardware monitoring

Cpu fan tachometer ,cpu temperature ,cpu voltage ,system temperature ,cpu fan multi-speed control

Audio integrated

Yes

Pci express 2.0 x1

2

Usb 3.2 gen 1

4 (usb 3.2 (type a))

Power connectors type

24+8 pin

Supported operating system

Windows 7 ,windows 10
