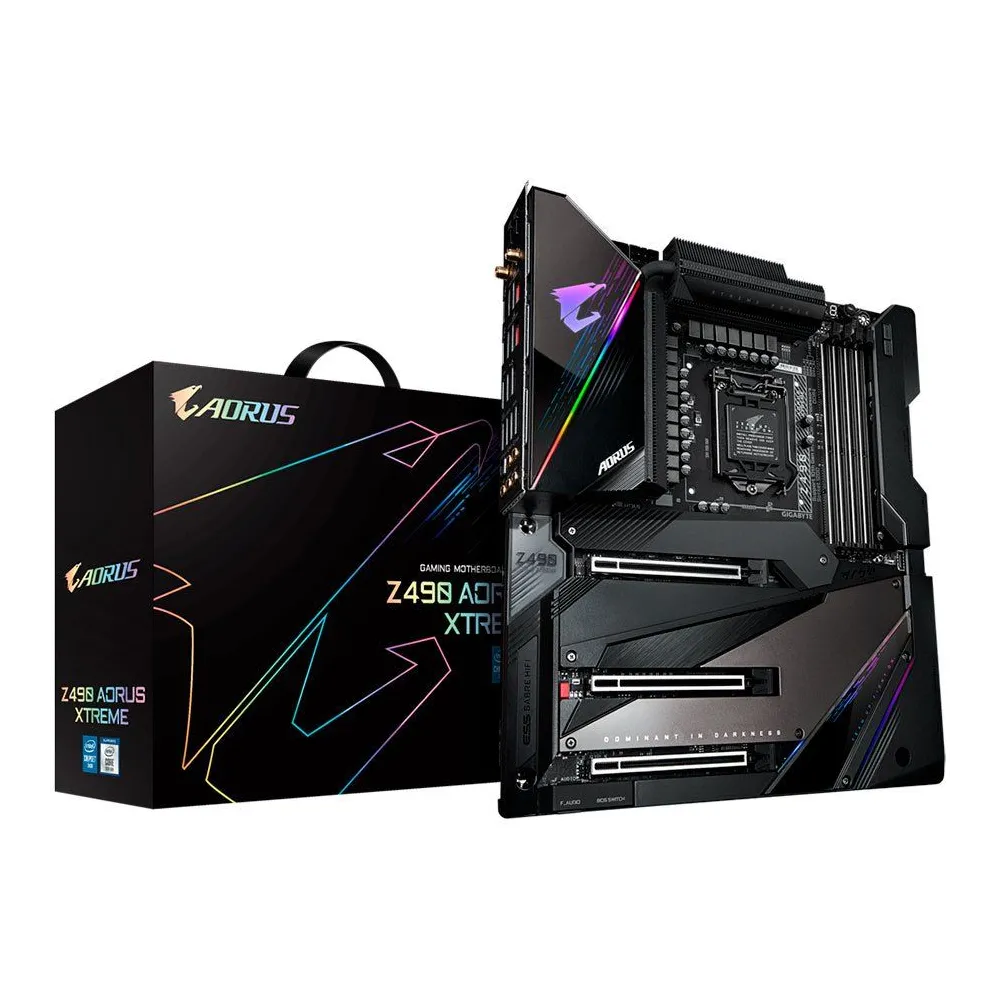

Gigabyte main board desktop z490 aorus xtreme

Fisa tehnica

Garantie

36

Hdmi

1 (hdmi (type a))

Wi-fi

Ieee 802.11a,ieee 802.11b,ieee 802.11g,ieee 802.11n wi-fi 4,ieee 802.11ac wi-fi 5,ieee 802.11ax wi-fi 6

Bluetooth

Bluetooth 5.1

Produse returnabile aflate in garantie

Yes

Criterii de validare a garantiei

Serial number

Greutatea bruta a pachetului

1.5 kg

Greutatea neta a pachetului

1 kg

Bucati in pachet

1

Greutatea bruta a cutiei

1.5 kg

Retail packaging net weight carton

0.25 kg

Retail packaging net weight plastic

0.25 kg

Pachete (colete) in cutie

1

Tip pachet

Retail

Locatia dispozitivului

Integrated

Factor de forma

Extended atx

Inaltime

271 mm

Latime

305 mm

Termen de garantie

36 month(s)

Standard soclu procesor (cpu)

Socket 1200

Cpu capacitate maxima suportata

1

Tip memorie

Ddr4 sdram

Factor de forma a memoriei

Dimm 288-pin

Viteza de memorare

2133mhz(pc4-17000) ,2400mhz(pc4-19200) ,2666mhz(pc4-21300)

Ofera metode de corectie a erorilor

Non-ecc/ecc

Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata

128 gb

Cantitatea totala de sloturi de memorie

4

Caracteristici memorie

Two ddr channels ,unbuffered ,dual rank ,single rank ,xmp

Integrated

Bstorage controller:/b,pcie 3.0 x4/sata (2 x m.2 (key m)),bstorage controller:/b,supports: level 0, level 1, level 5, level 10,sata iii-600 (6),bwi-fi controller:/b,intel wi-fi 6 ax201 ,bstorage controller:/b,pci-express x4 (1 x m.2),

Lan

2 (rj-45)

Suport protocol legatura date

10 gbps ,2.5 gbps

Chipset

Intel z490 express

Usb 2.0

2 (usb 2.0 (type a))

Pci express 3.0 x16

3

Audio chipset

Realtek alc1220-vb

Audio output mode

7.1 channel surround

Standard audio

High definition audio

Audio interface

5 (3.5-mm minijack)

S/pdif-out optical

1 (toslink)

Accesorii incluse

User guide ,driver cd

Prevazut cu cpu

Intel celeron ,intel pentium ,intel core i5 ,intel core i3 ,intel core i7 ,intel core i9 ,intel 10th gen processors

Lan integrated

Yes

Bios type

Ami

Bios features

Gigabyte q-flash ,wfm 2.0 support ,pnp 1.0a support ,uefi ,smbios 2.7 support ,dmi 2.7 support ,acpi 5.0 support ,256 mb flash rom

Hardware monitoring

Cpu fan tachometer ,cpu overheating protection ,cpu temperature ,cpu voltage

Software inclus

Fast boot ,cfosspeed ,norton internet security (oem version) ,xsplit gamecaster + broadcaster

Audio integrated

Yes

Usb 3.2 gen 1

2 (usb 3.2 (type a))

Power connectors type

24+8+4 pin

Supported operating system

Microsoft windows 10 pro 64-bit (license)

Usb 3.2 gen 2

4 (usb 3.2 (type a))

Mainboard features

Amd 2-way crossfire technology,amd quad crossfire,rgb fusion

Wlan

Integrated

Thunderbolt 3

2 (usb 3.2 (type c))

Wi-fi antenna

2 (rp-sma)
