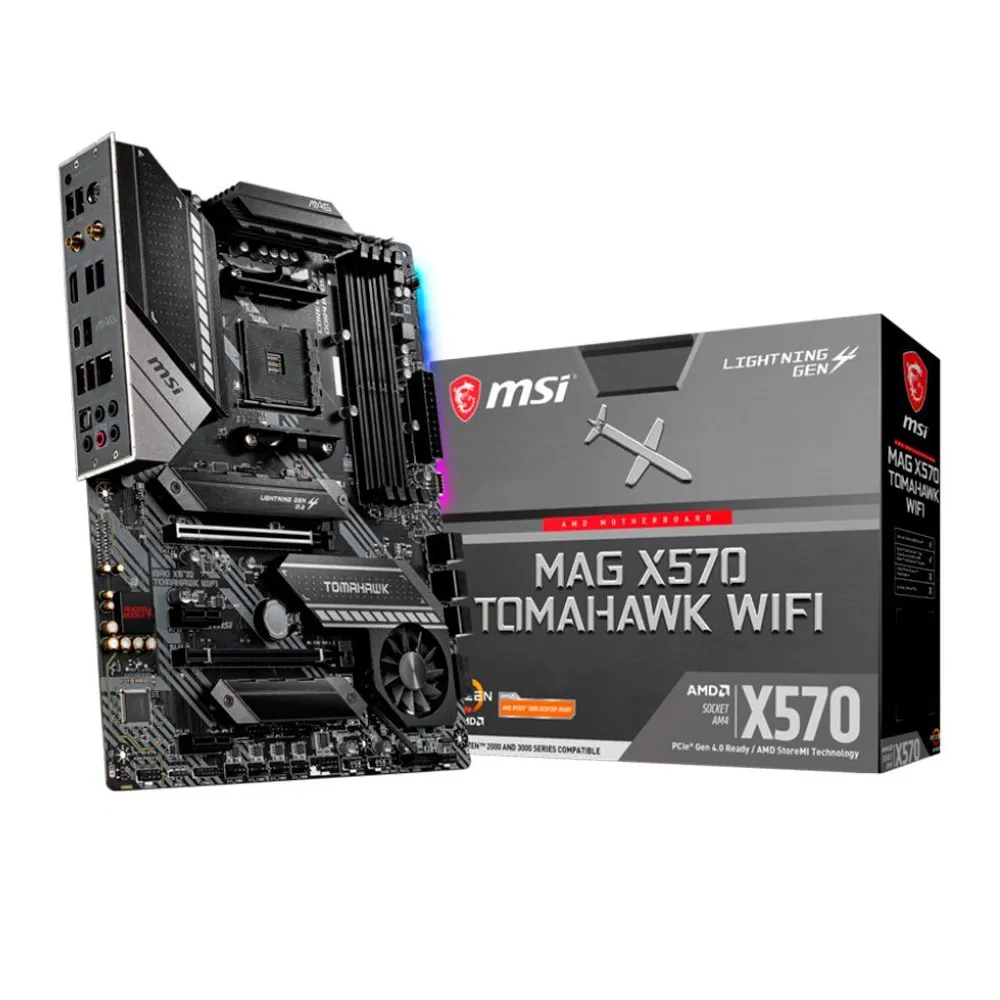

Msi main board desktop mag x570 tomahawk wifi (am4 4xddr4

Fisa tehnica

Garantie

36

Hdmi

1 (hdmi (type a))

Wi-fi

Ieee 802.11n wi-fi 4,ieee 802.11ac wi-fi 5,ieee 802.11ax wi-fi 6

Bluetooth

Bluetooth 5.1

Produse returnabile aflate in garantie

Yes

Criterii de validare a garantiei

Serial number

Greutatea bruta a pachetului

2.08 kg

Greutatea neta a pachetului

1.47 kg

Bucati in pachet

1

Greutatea bruta a cutiei

10.4 kg

Retail packaging net weight carton

5 kg

Retail packaging net weight plastic

1 kg

Pachete (colete) in cutie

5

Tip pachet

Box

Locatia dispozitivului

Integrated

Factor de forma

Atx

Inaltime

244 mm

Latime

305 mm

Termen de garantie

36 month(s)

Standard soclu procesor (cpu)

Socket am4

Cpu capacitate maxima suportata

1

Tip memorie

Ddr4 sdram

Factor de forma a memoriei

Dimm 288-pin

Viteza de memorare

1866mhz(pc4-14900) ,2133mhz(pc4-17000) ,2400mhz(pc4-19200) ,2667mhz(pc4-21300) ,2933mhz(pc4-23400) ,3000mhz(pc4-24000) ,3200mhz(pc4-25600)

Ofera metode de corectie a erorilor

Ecc/non-ecc

Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata

128 gb

Cantitatea totala de sloturi de memorie

4

Caracteristici memorie

Two ddr channels ,unbuffered ,xmp

Integrated

Bstorage controller:/b,supports: level 0, level 1, level 10,sata iii-600 (6),bstorage controller:/b,pcie/sata (3 x m.2),

Lan chipset

Realtek rtl8125b

Lan

1 (rj-45)

Suport protocol legatura date

2.5 gbps

Pci express 4.0 x16

2

Chipset

Amd x570

Usb 2.0

2 (4-pin usb (type a))

Audio chipset

Realtek alc1200

Audio output mode

7.1 channel surround

Standard audio

High definition audio

Audio interface

5 (3.5-mm minijack)

S/pdif-out optical

1

Plug-in-card

Bwi-fi controller:/b,1 x m.2 (key e),

Ps/2

1

Pci express 3.0 x1

2

Prevazut cu cpu

Amd ryzen series

Lan integrated

Yes

Bios type

Ami

Bios features

Multilingual bios ,uefi ,smbios 2.8 support ,acpi 6.1 support ,256 mb flash rom

Hardware monitoring

Cpu fan tachometer ,cpu overheating protection ,system temperature ,system voltage

Audio integrated

Yes

Usb 3.2 gen 1

2 (usb 3.2 (type a))

Power connectors type

24+8+4 pin

Usb 3.2 gen 2

3 (usb 3.2 (type a)) 1 (usb 3.2 (type c))

Mainboard features

Amd 2-way crossfirex technology

Wi-fi antenna

2 (rp-sma)
