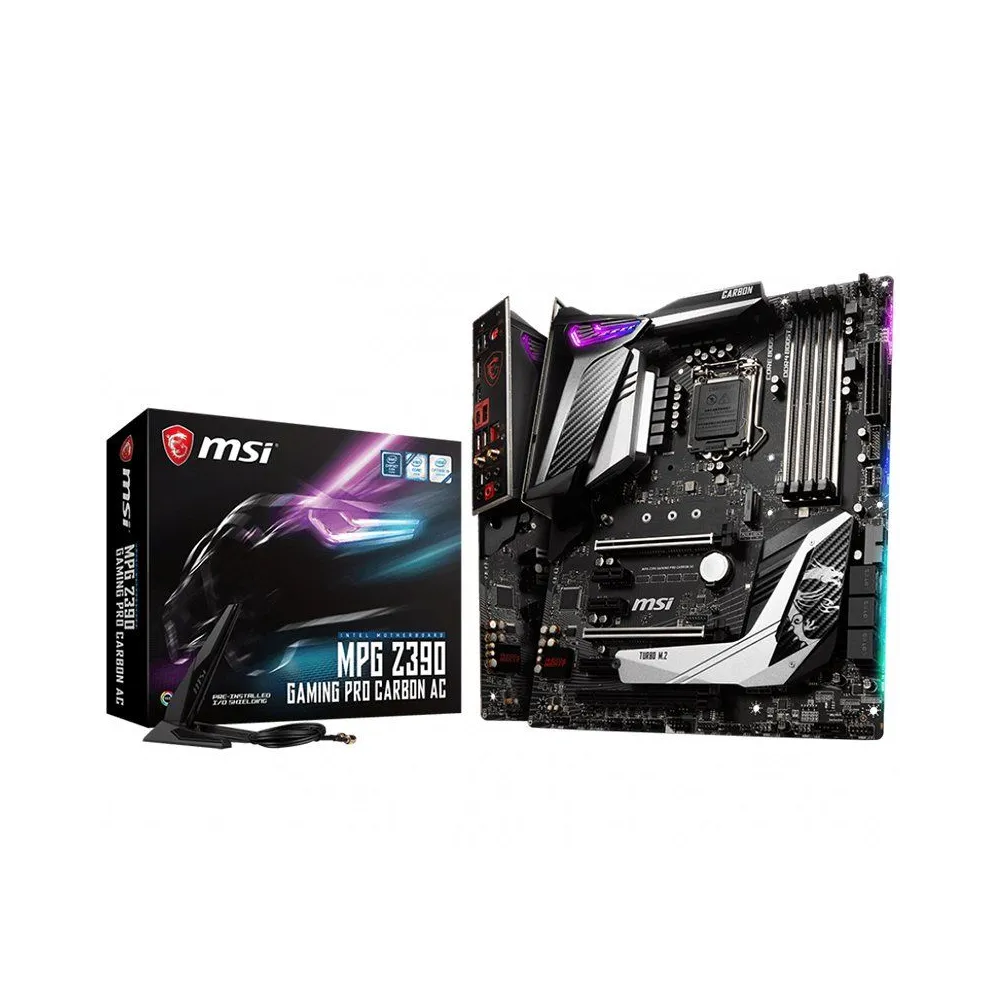

Msi main board desktop mpg z390 gaming pro carbon ac

Fisa tehnica

Garantie

36

Hdmi

1 (hdmi (type a))

Wi-fi

Ieee 802.11a,ieee 802.11b,ieee 802.11g,ieee 802.11n wi-fi 4,ieee 802.11ac wi-fi 5

Bluetooth

Bluetooth 5.0

Produse returnabile aflate in garantie

Yes

Criterii de validare a garantiei

Serial number

Greutatea bruta a pachetului

2.107 kg

Bucati in pachet

1

Greutatea bruta a cutiei

2.107 kg

Pachete (colete) in cutie

1

Tip pachet

Box

Locatia dispozitivului

Integrated

Factor de forma

Atx

Inaltime

304 mm

Latime

243 mm

Termen de garantie

36 month(s)

Standard soclu procesor (cpu)

Socket 1151

Cpu capacitate maxima suportata

1

Tip memorie

Ddr4 sdram

Factor de forma a memoriei

Dimm 288-pin

Viteza de memorare

2133mhz(pc4-17000) ,2400mhz(pc4-19200) ,2666mhz(pc4-21300)

Ofera metode de corectie a erorilor

Non-ecc

Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata

128 gb

Cantitatea totala de sloturi de memorie

4

Caracteristici memorie

Two ddr channels ,unbuffered ,xmp

Integrated

Bstorage controller:/b,supports: level 0, level 1, level 10, level 5,sata iii-600 (6),bstorage controller:/b,supports: level 0, level 1,pcie 3.0 x4/sata (2 x m.2 (key m)),bwi-fi controller:/b,intel dual band wireless-ac 9560 1 x m.2 (key e),

Lan chipset

Intel i219v

Lan

1 (rj-45)

Suport protocol legatura date

Gigabit ethernet/fast ethernet/ethernet

Chipset

Intel z390

Usb 2.0

2 (usb 2.0 (type a))

Pci express 3.0 x16

3

Audio chipset

Realtek alc1220p-vb2

Audio output mode

7.1 channel surround

Standard audio

High definition audio

Displayport

1

Audio interface

5 (3.5-mm minijack)

S/pdif-out optical

1

Usb 3.1 gen 2

1 (usb type-c) 3 (usb 3.1 (type a))

Ps/2

1

Pci express 3.0 x1

3

Prevazut cu cpu

Intel celeron ,intel pentium ,intel core i5 ,intel core i3 ,intel core i7

Lan integrated

Yes

Audio integrated

Yes

Power connectors type

24+8+4 pin

Mainboard features

Amd 3-way crossfirex technology,rgb led,2-way nvidia sli technology

Wi-fi antenna

2
