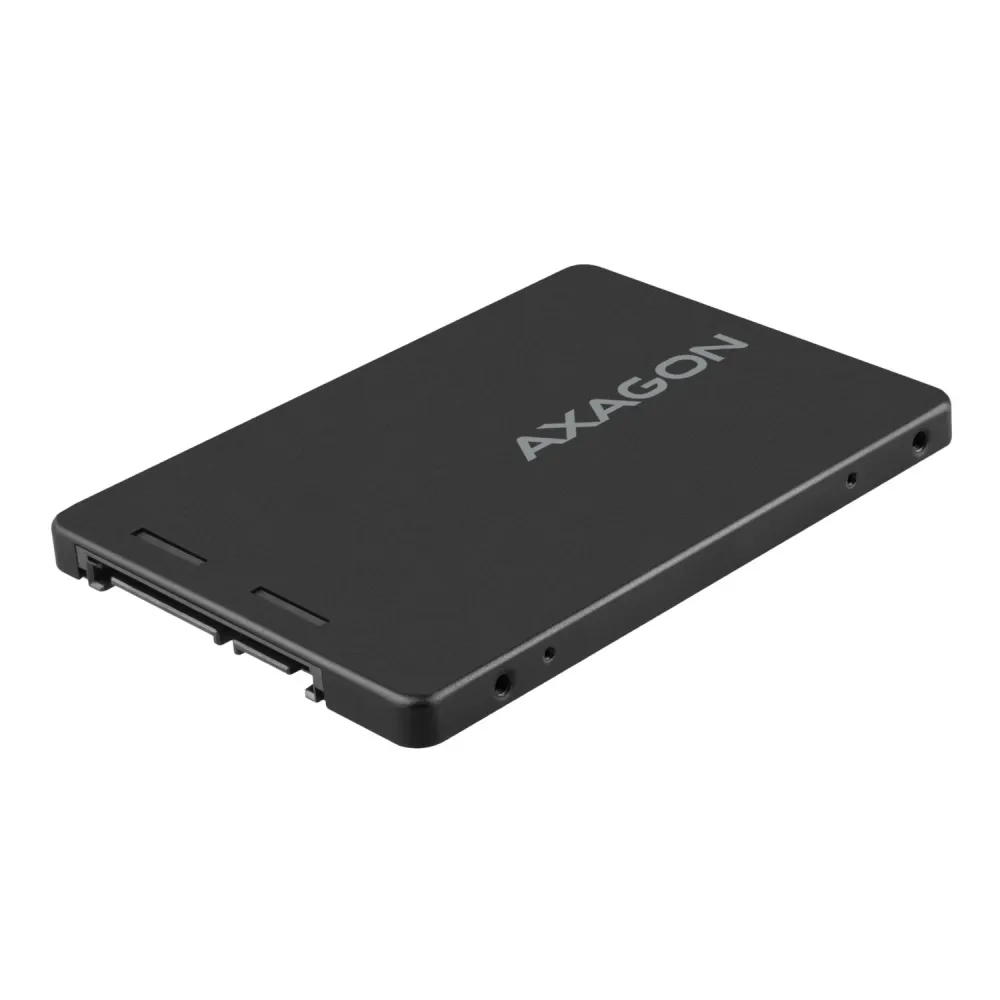

Rack intern rss-m2b m.2 - sata 2.5 internal

AXAGON RSS-M2B SATA - M.2 SSD SATA, up to 80mm SSD, ALU body, black Input: • SATA 6G (SATA III) interface, compatible with SATA 3G (SATA II) and SATA 1.5G (SATA I). • 22-pin (7+15) SATA data and power supply male connector to connect the box with the motherboard. To achieve the best possible transmission rates, the use of a SATA 6G controller is recommended. Device support: • SATA M.2 SSD disks. • designed for B+M-key and B-key card formats, • NGFF 75-pin B-key slot for SATA M.2 drives. Other features: • Support of B+M-key or B-key SATA (AHCI) M.2 SSDs without maximum capacity limitation. • Support of M.2 drives with a size of 2230, 2242, 2260, and 2280 mm. • Support of both one-sided and double-sided M.2 SSDs. • Compliant with Serial ATA 3.2 specification (SATA/600), bit rates of up to 6 Gb/s (600 MB/s). • Compliant with Serial ATA 2.0 specification (SATA/300), transfer rates as high as 3 Gb/s (300 MB/s). • Compliant with Serial ATA 1.0 specification (SATA/150), bit rates of up to 1.5 Gb/s (150 MB/s). • Support of TRIM functionality to limit gradual degradation of the SSD performance over time. • Support of S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) system that monitors disk status. • SSD boot support in internal box. • Full Plug and Play support. • The adapter is supplied from a standard 15-pin SATA power supply connector. • The aluminium body helps to cool the M.2 SSD disk.
