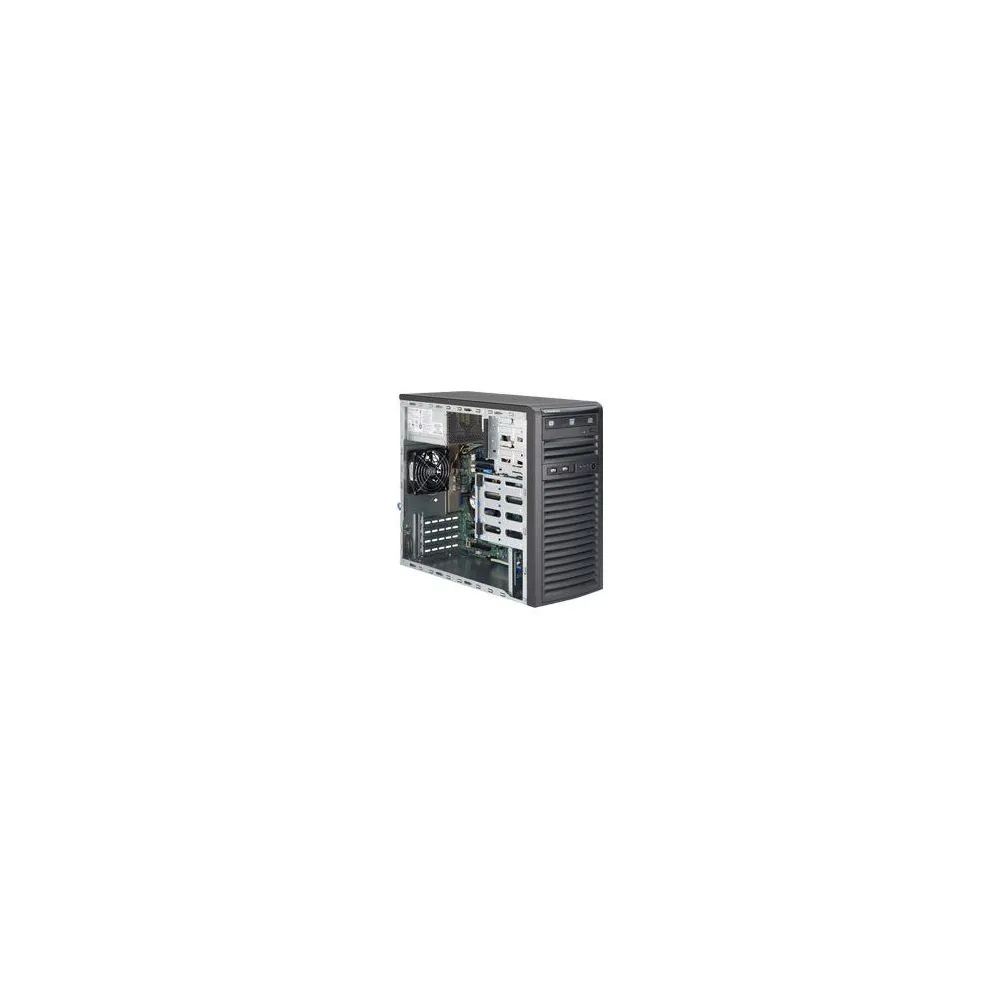

Supermicro superserver sys-5039d-i mid tower c236 chipset single socket h4

Fisa tehnica

Garantie

12

Vga

1 (15-pin db)

Tip sistem

Server barebone

Produse returnabile aflate in garantie

Yes

Criterii de validare a garantiei

Serial number

Greutatea bruta a pachetului

18.1 kg

Bucati in pachet

1

Retail packaging net weight carton

0 kg

Retail packaging net weight plastic

0 kg

Pachete (colete) in cutie

1

Tip pachet

Retail

Adancime

425 mm

Inaltime

362 mm

Latime

184 mm

Greutate nominala

18.1 kg

Termen de garantie

12 month(s)

Temperatura maxima de operare a mediului ambiant

35 °c

Temperatura ambientala minima de operare

10 °c

Sata iii

6

Umiditate maxima de operare

90 %

Umiditate minima de operare

8 %

Adancime pachet

610 mm

Grosimea pachetului

530 mm

Inaltime pachet

350 mm

System form factor

Midi tower

Supported cpus

Pentium,celeron,xeon,core i3

Standard soclu procesor (cpu)

Socket 1151

Cpu capacitate maxima suportata

1

Quantity of mainboards supported

1

Tip memorie

Ddr4 sdram

Factor de forma a memoriei

Dimm 288-pin

Viteza de memorare

2133mhz(pc4-17000) ,2400mhz(pc4-19200) ,1600mhz(pc4-12800) ,1866mhz(pc4-14900)

Ofera metode de corectie a erorilor

Ecc

Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata

64 gb

Cantitatea totala de sloturi de memorie

4

Video controller form factor

Integrated

Chipset (circuit integrat) video

Aspeed ast2400

Networking form factor

Integrated

Lan chipset

Intel i210at

Lan

2 (rj-45)
Gigabit ethernet

Usb 3.0

3 (usb 3.0 (type a))

Dispozitiv alimentare

Power supply

Power device location

Internal

Voltaj intrare

Ac 100-240 v

Frecventa intrare

50/60 hz

Power device installed

1

Nr maxim de dispozitive de alimentare

1

Puterea maxima la iesire

300 w

Culoare la exterior

Black

Chipset

Intel c232

Storage controller form factor

Integrated

Storage controller type

Sata iii

Raid controller interface (tip)

Sata iii

Suporta nivelul ariilor redundante de discuri independente

Level 0 ,level 1 ,level 10 ,level 5

Pci express 3.0 x8 slot quantity

2

Management port

1 (rj-45)

5.25-inch external drive bays

2

3.5-inch internal drive bays

4

Pci express 3.0 x4 slot quantity

1

Usb 2.0

2 (4-pin usb (type a))

Serial

1 (9-pin)
