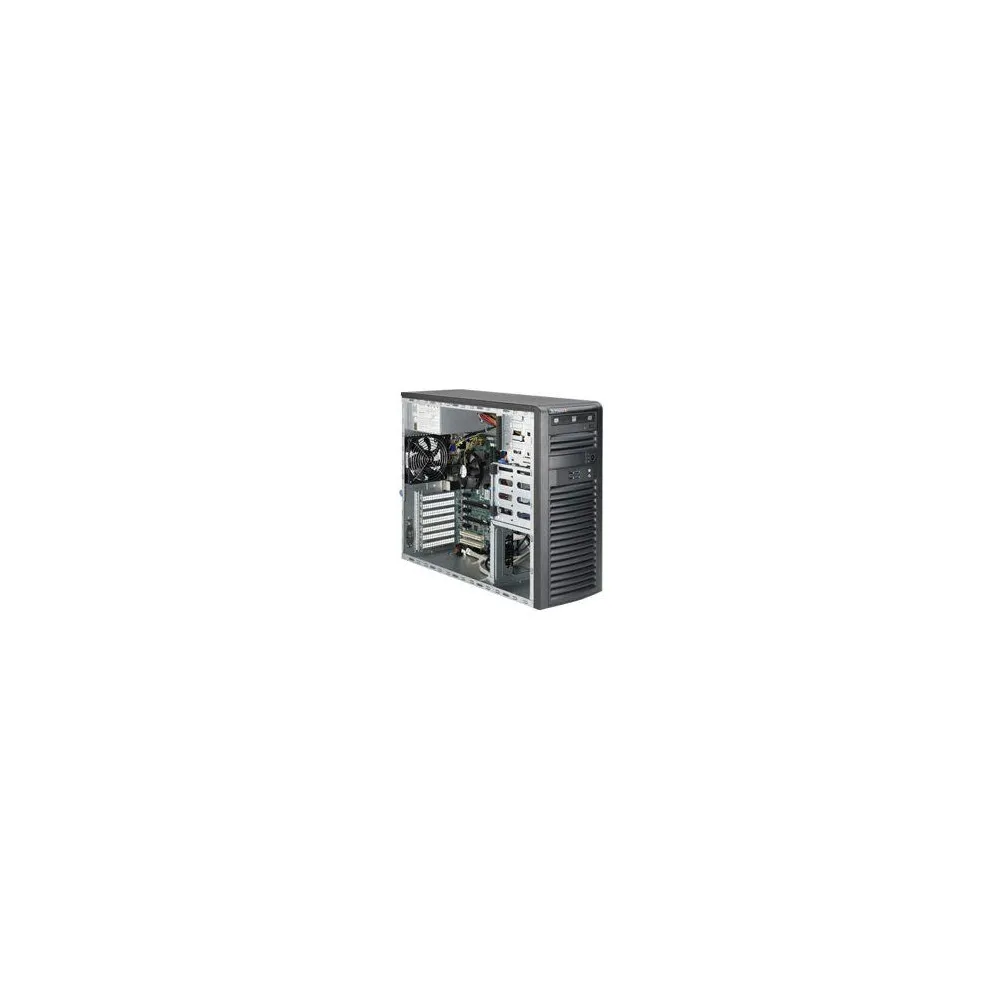

Supermicro superworkstation sys-5039a-il mid tower c236 chipset single socket h4

Fisa tehnica

Garantie

12

Dvi

1 (dvi-d)

Hdmi

1

Tip sistem

Server barebone

Produse returnabile aflate in garantie

Yes

Criterii de validare a garantiei

Serial number

Greutatea bruta a pachetului

18.1 kg

Bucati in pachet

1

Retail packaging net weight carton

0 kg

Retail packaging net weight plastic

0 kg

Pachete (colete) in cutie

1

Tip pachet

Retail

Adancime

525.3 mm

Inaltime

424 mm

Latime

192 mm

Greutate nominala

18.1 kg

Termen de garantie

12 month(s)

Temperatura maxima de operare a mediului ambiant

35 °c

Temperatura ambientala minima de operare

10 °c

Sata iii

8

Umiditate maxima de operare

90 %

Umiditate minima de operare

8 %

Adancime pachet

720 mm

Grosimea pachetului

610 mm

Inaltime pachet

350 mm

System form factor

Midi tower

Supported cpus

Pentium,xeon processor e3-1200v5 series,xeon processor e3-1200v6 series,celeron,core i7,core i5,core i3

Standard soclu procesor (cpu)

Socket 1151

Cpu capacitate maxima suportata

1

Quantity of mainboards supported

1

Tip memorie

Ddr4 sdram

Factor de forma a memoriei

Dimm 288-pin

Viteza de memorare

1600mhz(pc4-12800) ,1866mhz(pc4-14900) ,2133mhz(pc4-17000) ,2400mhz(pc4-19200)

Ofera metode de corectie a erorilor

Ecc

Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata

64 gb

Cantitatea totala de sloturi de memorie

4

Caracteristici memorie

Unbuffered

Networking form factor

Integrated

Lan chipset

Intel i219lm / i210at

Lan

2 (rj-45)
Gigabit ethernet

Usb 3.0

4 (usb 3.0 (type a))

Dispozitiv alimentare

Power supply

Power device location

Internal

Voltaj intrare

Ac 100-240 v

Frecventa intrare

50/60 hz

Puterea maxima la iesire

500 w

Culoare la exterior

Black

Chipset

Intel c226

Storage controller form factor

Integrated

Storage controller type

Sata iii

Raid controller interface (tip)

Sata iii

Suporta nivelul ariilor redundante de discuri independente

Level 0 ,level 1 ,level 10 ,level 5

Fans quantity

1 x 120mm

Pci express 3.0 x16 slot quantity

2

Certificari

Rohs

5.25-inch external drive bays

2

3.5-inch internal drive bays

4

Usb 2.0

4 (4-pin usb (type a))

Audio controller form factor

Integrated

Audio chipset

Realtek alc888s

Audio output mode

7.1 channel surround

Standard audio

High definition audio

Pci express 3.0 x1 slot quantity

2

Pci slot (cantitate)

2

Usb 3.1

2

Displayport

1

Audio interface

5 (3.5-mm minijack)

S/pdif-out optical

1

Headphones

1 (3.5-mm minijack)

Microphone-in

1 (3.5-mm minijack)
