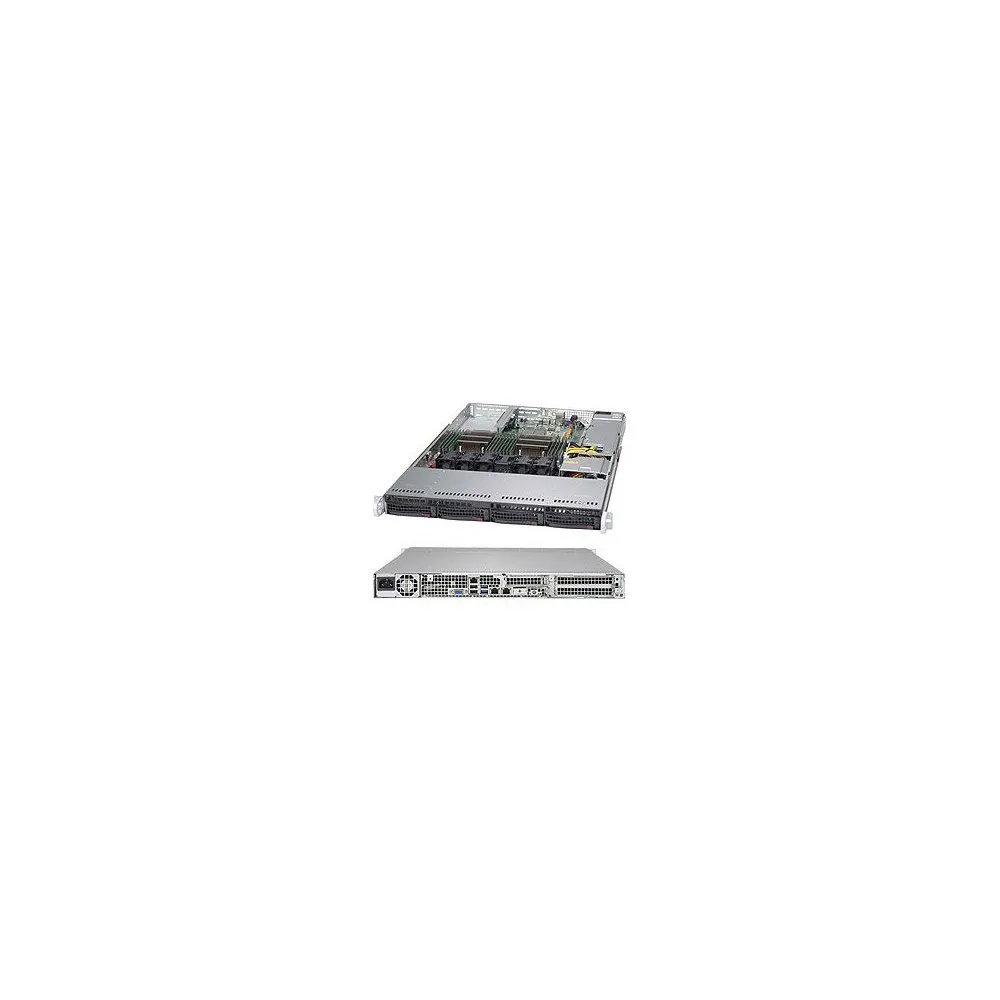

Supermicro superserver sys-6018r-tdw 1u data center optimized dual skt intel

Fisa tehnica

Garantie

12

Vga

1 (15-pin d-sub)

Tip sistem

Server

Produse returnabile aflate in garantie

Yes

Criterii de validare a garantiei

Serial number

Greutatea bruta a pachetului

20.9 kg

Bucati in pachet

1

Retail packaging net weight carton

0 kg

Retail packaging net weight plastic

0 kg

Pachete (colete) in cutie

1

Tip pachet

Retail

Adancime

650 mm

Inaltime

43 mm

Latime

437 mm

Greutate nominala

10 kg

Termen de garantie

12 month(s)

Temperatura maxima de operare a mediului ambiant

40 °c

Temperatura ambientala minima de operare

5 °c

Sata iii

6

Umiditate maxima de operare

90 %

Umiditate minima de operare

8 %

Adancime pachet

856 mm

Grosimea pachetului

597 mm

Inaltime pachet

216 mm

System form factor

Rack-mountable

Supported cpus

Xeon processor e5-2600v3 series,xeon processor e5-2600v4 series

Standard soclu procesor (cpu)

Socket 2011

Cpu capacitate maxima suportata

2

Quantity of mainboards supported

1

Tip memorie

Ddr4 sdram

Factor de forma a memoriei

Dimm 288-pin

Viteza de memorare

1600mhz(pc4-12800) ,1866mhz(pc4-14900) ,2133mhz(pc4-17000) ,2400mhz(pc4-19200)

Ofera metode de corectie a erorilor

Ecc

Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata

2 tb

Cantitatea totala de sloturi de memorie

16

Caracteristici memorie

Registered ,load reduced

Video controller form factor

Integrated

Chipset (circuit integrat) video

Aspeed ast2400

Networking form factor

Integrated

Lan chipset

Intel i350

Lan

2 (rj-45)
Gigabit ethernet

Suport protocol legatura date

Gigabit ethernet/fast ethernet/ethernet

Number of slim external drive bays

1

Usb 3.0

3

Dispozitiv alimentare

Power supply

Power device location

Internal

Voltaj intrare

Ac 100-240 v

Frecventa intrare

50/60 hz

Power device installed

1

Puterea maxima la iesire

600 w

Culoare la exterior

Black

Inaltimea standard a rack-ului

1 u

Chipset

Intel c612

Storage controller form factor

Integrated

Storage controller type

Sata iii

Raid controller interface (tip)

Sata iii

Suporta nivelul ariilor redundante de discuri independente

Level 0 ,level 1 ,level 10 ,level 5

Fans quantity

5 x 40mm

Pci express 3.0 x16 slot quantity

2

Pci express 3.0 x8 slot quantity

1

Management port

1 (rj-45)

Usb 2.0

2 (4-pin usb (type a))

3.5-inch hot-swap drive bays

4

Numar maxim de ventilatoare

5 count
